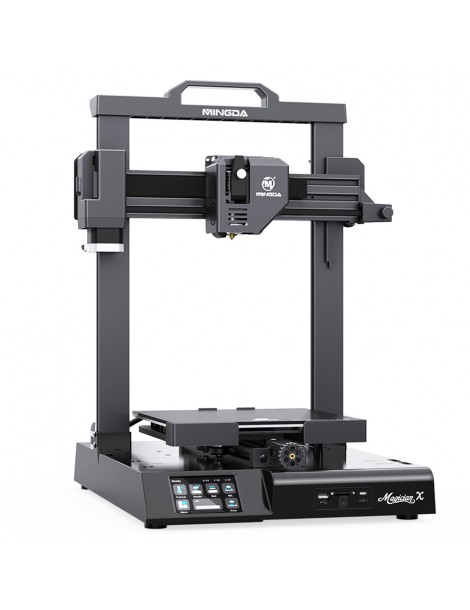

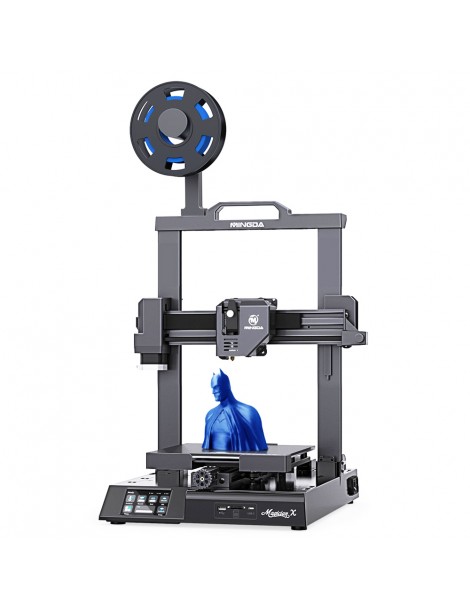

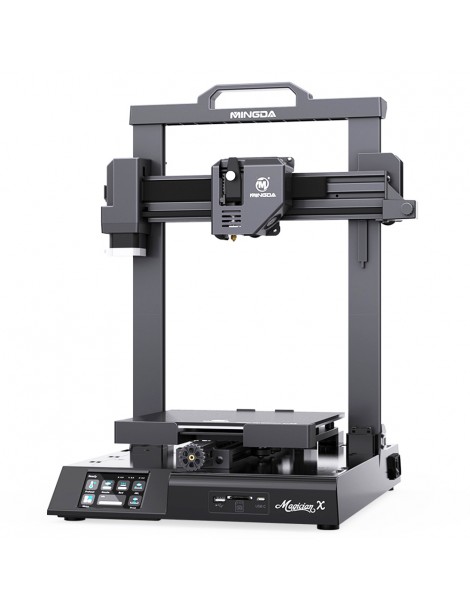

MINGDA Magician X Stampante 3D modellazione a deposizione fusa modulare Stampa a livellamento Vendita Calda

Elettronica di consumo / Stampa e scansione 3D / Stampante 3D / MINGDA Magician X Stampante 3D modellazione a deposizione fusa modulare Stampa a livellamento

Highlights

The Newly Upgraded Chip of Brand Core

high-speed computing; high-performance,32-bit frequency: 168M; Cortex-M4 CPU with FPU and DSP instruction, memory protection unit

Auto-Leveling

Don't need manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed. High-sensitivity sensor, 16-point precise leveling.

Ultra-Silent Printing

The mechanical structure is ultraquiet, and the chip 2209 is ultra-quiet. Ultra-quiet TMCUse TMC Stepper motor drivers, super quiet and noise reduction, running more stable,<50db silent="" printing="" p="">

Glass Heat Bed

The 4th generation of glass heat bed cold glue installation, easy to take the model and scratch proof.

Dual Cooling Fans

The printing head adopts a double fan two-way heat dissipation system, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion

Conveying material uniform without winding

Automatic Filament

DetectionBroken material can be automatically detected

Multi Connection

Support SD card, USB, and USB-C supports online printing

Dual Z-Axis with Synchronous Belt

Improve the accuracy, keep the "layer shift" away.

Belt Tensioner on X/Y Axis

Adjust the belt tightness to avoid long-term use of the printer, the belt is loose.

3.5" Large Touch Screen

The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.

Specification

General	Brand: Mingda Type: 3D Printer Model: MINGDA Magician X Color: Black
Specification	Print Parameters: modellazione a deposizione fusa ( Fused Deposition Modeling)  Build Volume: 230(L)x230(W)x260(H)mm  Print Resolution: 0.1mm  Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm  Extruder Number: Single  Nozzle Diameter: 0.4mm  Print Speed: <200mm/s (recommended 60 - 80mm/s)  Support Filaments: PLA, TPU, ABS  Software Parameters: Cura  Input Formats: .STL, .OBJ, .AMF  Output Formats: GCODE  Connection Mode: SD Card, U Disk, USB-C  Input Voltage: 100/240 V AC, 60/50Hz  Output Voltage: 24V/14.6A (350W)  Ambient Operating Temperature: 5 C - 40 C  Operational Nozzle Temperature: max 260 C  Operational Hot Bed Temperature: max 110 C
Weight & Size	Product Weight: 9.4kg Package Weight: 10kg Product Size(L x W x H): 555x430x660mm Package Size(L x W x H): 500x43x20.3mm
Package Contents	1 x Filament 1 x Filament Holder 1 x Tool Box Cover 2 x M5*25  4 x M4*20  1 x SD Card 1 x Teflon Tube 1 x Nozzle 1 x Power Cable 1 x Wrench 1 x Allen Wrench 1 x User Manual
